If you have a well pump on your property, you know how important it is to keep it in good working condition. If your well pump isn’t working correctly, you could have an emergency. When this happens, it’s critical to get it fixed right away. But, when the well pump is out of commission, you may be wondering how to reset the pressure switch. In this post, we will show you how to reset the well pump pressure switch without lever.
When you want to adjust the pressure switch without a lever, you can follow my guideline here:
- Make sure the power button is pressed.
- Use a voltage tester to perform a second examination of the power button.
- Pull the contacts apart, then use a nail file or emery board to smooth out any burned or pitted areas.
- You’ll only have a little window of opportunity to employ it. But construct a replacement as quickly as you can.
On the other hand, depending on your well pump’s status, you will have different methods to handle the pressure switch issues.
How Is A Pressure Switch Used In A Well Pump?
Commonly, well pumps and pressure switches go together. So you use clean water from well pumps to bring clean water into your home for drinking, watering your garden, and filling your Super Soaker, which is overly huge, but you can never have too much firepower. Just me, you ask? Yet the Inspector veers off course…
In essence, pressure switches inform the pump when to run, when to stop, and to put it briefly. According to a more technical description, a pressure switch is an apparatus that monitors pressure and outputs when a predetermined pressure is reached. The switch’s “set point” is the precise pressure at which it opens and closes.
For a minimum of 30 PSI and a maximum of 50 PSI, several residential pressure switches are constructed (or pounds per square inch). As a result, in this illustration, the switch opens to allow more water to flow into the system when the system’s pressure decreases to 30 PSI. The switch stops working at 50 PSI.
Well Pump Pressure Switch Reset
Most of the time, a well pump will work fine. But there are occasions when you need to reset the pressure switch. A stuck valve usually causes this. It is a widespread problem, and it can be fixed quickly. You will find the solution to this problem here.
How to reset well pump pressure switch without lever
Some levers assist in the simultaneous release of water in every well pump. When there are pump issues, these levers might be pretty valuable. Typically, releasing the lever can assist in quickly resetting the switch when there are problems with the well pump’s bypass pressure switch.
However, occasionally internal damage can make the lever unusable. Solutions that rely on the associated lever will stop working in situations like this. But don’t worry. There are alternatives to using a lever to reset the pressure switch. Scroll down and learn what to do in some common cases!
Case 1: Ensure that the power is on.
The water pump’s power must be turned on to activate the reset button. Then, just carry out the steps:
- Verify whether the pressure switch-equipped water pump, which is situated directly adjacent to the pressure tank, is turned on or not. Turn it on if not.
- Confirm whether or not the well’s double-pole circuit breaker is tripping. Reset it if you notice that it has.
- Circuit breakers that trip can potentially mean that the pump is damaged rather than the switch. It is advised to ask for professional assistance in this situation if it is feasible.

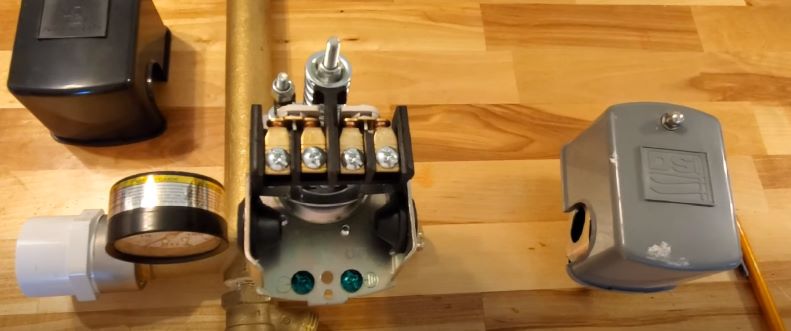

Case 2: Examine the pressure switch
Be sure to inspect the switch. If the switch is faulty, no water will flow from the well. In this instance, you should:
- To remove the cover, take a screwdriver and gently tap the handle on the tube just below the switch. To shake the electrical contacts, you must do this.
- Once you’ve finished, determine whether or not there is a spark. If not, a quick reset of the switch is possible.
- If you notice sparks, the switch needs to be replaced because it is damaged. Bring a replacement and install it right away.
Case 3: Switch temporarily reset
The pressure switch will activate when you bang on a tube, and the electric contact contacts are burned or pitted. A weak connection and problems with water flow may result from this. You can reset the switch in the following methods until you acquire a replacement:
- Be sure to depress the power button.
- Use a voltage tester to conduct a second inspection of the power button.
- Pull open the contacts and use an emery board or nail file to smooth out any burned or pitted areas.
- You’ll have a little window of time to use it. But as soon as you can, build a substitute.

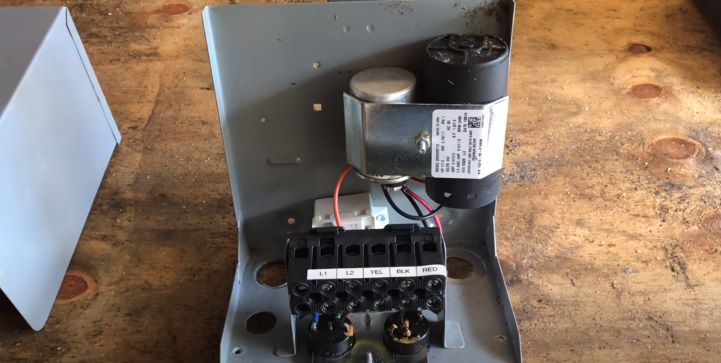

Case 4: Pump controller replacement
You will need to reset the switch for the water pump to function if the pump control is broken. In addition, the pump controller needs to be changed in this situation. The actions listed below can help you accomplish that:
- The pump cover needs to be disconnected. So, after removing the bottom screw and disconnecting it, lift off the box.
- In this instance, you’ll need to purchase a new controller replacement.
- After installing the new replacement component, cover the old box with the new one. If you purchase the same brand as the previous one, there is no need to rewire. Rewire it if it isn’t.
- When the pump runs, you can see that the switch has been reset.
Keep in mind that the pump controller typically comes with a capacitor attached that aids in starting the pump. The procedure described above can be used to reset the switch without the lever on most tanks because of how they are set up.
Case 5: Swap out the switch
The only option left after the switch is damaged to restart the pump is to replace the switch. To accomplish it, you must
- Determine whether the switch is replaceable or not by checking it.
- Test the pressure tank to check if it has any signs of being waterlogged after determining that the switch needs to be replaced. Specifically, whether or not the water is pulsating.
- Using a screwdriver, carefully unplug the switch’s wires once you’ve completed your inspection. You can more easily join the cables if you label them.
- Coat the tubing threats with Teflon tape or pipe dope.
- Wait a few minutes for the coating to set in the same orientation.
- The wires should then be put back together and connected.
Case 6: Condition of the air valve for the pressure pump
You can have a saturated tank if there’s a switch issue. If this happens, you can reset the switch by doing the following:
- Find the air valve. It often sits on the tank’s top.
- Using a screwdriver, remove the plastic cover from the top of the air valve.
- Take the screwdriver again and depress the air valve to see whether the water flows out.
- You’ve successfully reset the well pump switch if you can see water flowing out.

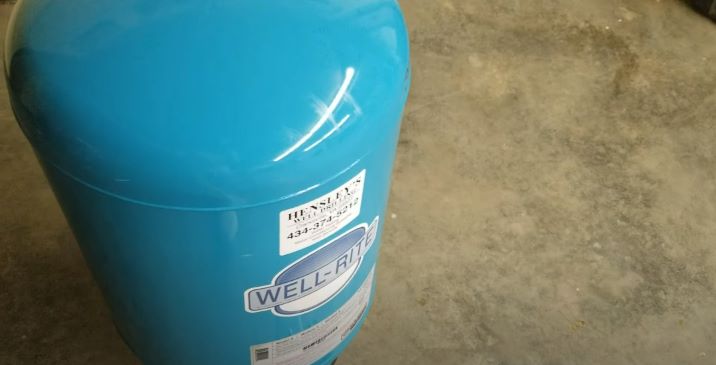

Case 7: Pump up the tank
Sometimes a worn-out tank might cause the well pump’s switch to malfunction. When that happens, the water delivered to the faucets or taps is contaminated. Rocking the tank might aid in resetting the switch in such circumstances. You only need to:
- Carefully put the top against the tank to give it a small rock.
- The tank must be replaced if the top feels heavy and you cannot rock it. If not, you may shake it slightly while turning on the power pressure to see whether or not the water is flowing.
- Be cautious about draining and replacing any heavy or defective tanks that you locate.
Reset square D pressure switch no lever
If your square D pressure switch no lever is not working, there is a reset procedure you can follow.
- Turn off the well pump by turning off the breaker or unplugging the power cord.
- Open the pump cover by unscrewing the four screws that hold it in place.
- Locate the low-pressure switch on the side of the pump.
- Push the switch to the off position by pressing it down until it clicks.
- Screw the cover back onto the pump, and turn the power back on.
Reset well pump after power outage no lever
To measure the voltage on both wires, as well as the voltage between them and the voltage going from each wire to the ground, you will need a voltmeter. Take readings from the line side as well as the load side of the pressure switch.
To activate the pressure switch, you must press down on it (in the direction of the pressure port) and push up on it (in the opposite direction of the pressure port) to deactivate it.
Why Do You Need To Reset Well Pump Pressure Switch?
If you’re experiencing problems with your well pump, it’s time to reset the pressure switch. This little device controls the pressure in your well, and if it’s not working correctly, it can cause your well to not function properly. So why reset the pressure switch?
Here are a few reasons:
- If your pressure switch isn’t working correctly, it can cause your well to not function at all.
- When your pressure switch is old, it may not be able to handle the pressure that your well is pumping. This can lead to many problems, including damaged pipes and even a well explosion.
- If your pressure switch is damaged, it may be leaking fluid. This fluid can damage your pipes, and it can also contaminate your water.
So if you’re experiencing any problems with your well pump, it’s worth fixing the pressure switch.
Is there a reset button on a well pump?
Unfortunately, there is no reset button on a well pump.
Why is my well pump not kicking on?
One possible reason your well pump may not be kicking on is that the pump has lost power. Therefore, checking your well pump’s power supply and ensuring it is fully operational before relying on it to provide water is essential.
Where is the pressure switch on a well pump?
Near the pressure tank, there is a pressure switch on a 1/4-inch tube. When the pressure drops to the point that the pressure tank needs extra water, it detects the drop.
